GROHE Plus 4-hole bath combination

Product Number
29307DC3
EAN
4005176574160
Colour
supersteel

Product Description

  • GROHE SilkMove 35 mm ceramic cartridge
  • with temperature limiter
  • GROHE StarLight finish
  • consisting of:
  • pre-assembled spout with laminar mousseur
  • single lever mixer operating element
  • metal lever
  • diverter bath/shower
  • hand shower Euphoria Cube 6.6 l/min
  • metal shower hose 2000 mm
  • flexible connection hoses
  • connection for shower hose
  • protected against backflow
  • can be used with 29 037 002
  • minimum pressure 1.0 bar

Technical Information

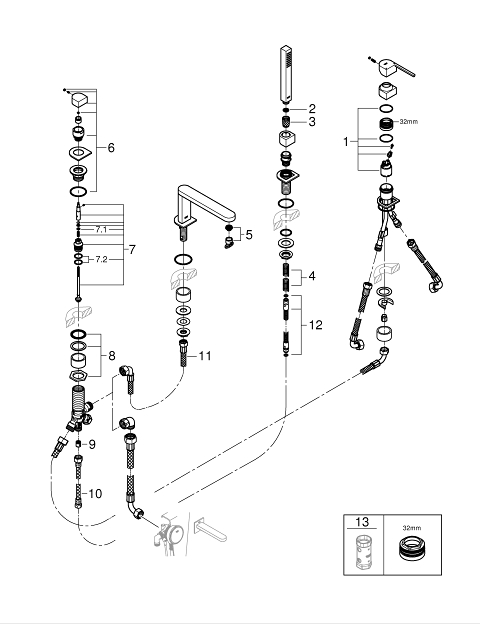

Spare Parts

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Cartridge 46374000
2 Dirt strainer 0700200M
3 Cone nut 08864DC0
4 Compression spring 00869000
5 Mousseur 48009000
6 diverter knob 48494DC0
7 Diverter 45443000
7.1 Sealing washer Ø 6 x Ø 2 0128300M
7.2 Sealing washer 0120500M
8 Shank 45456000
9 Non-return valve 08565000
10 Connecting hose 07300000
11 Connecting hose 48018000
12 Metal shower hose 28146000
13 Socket spanner 19332000*
