BauEdge Single-lever shower mixer 1/2″
Key Features
- wall mounted
- GROHE Long-Life 35 mm ceramic cartridge
- with temperature limiter
- GROHE Long-Life finish
- adjustable flow rate limiter
shower bottom outlet with integrated non return-valve
- protected against backflow
- S-unions
Technical Product Information
CAD Data
Approvals&Documentation

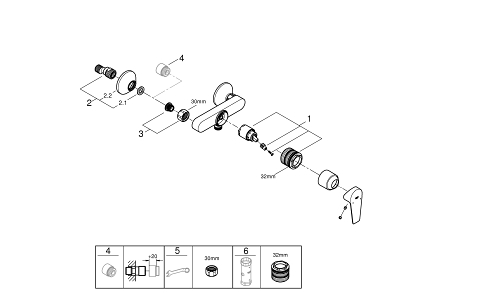

| Pos.-nr. | Prod. description | Spare part-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Cartridge | 46374000 |
| 2 | S-union | 12075000 |
| 2.1 | Seal | 0138600M |
| 2.2 | Escutcheon | 0221000M |
| 3 | Screw connection 1/2" | 45044000 |
| 4 | Extension 3/4", 20 mm | 0713000M* |
| 5 | Temperature limiter | 46375000* |
| 6 | Special spanner | 19377000* |
| 7 | Socket Spanner | 19332000* |
