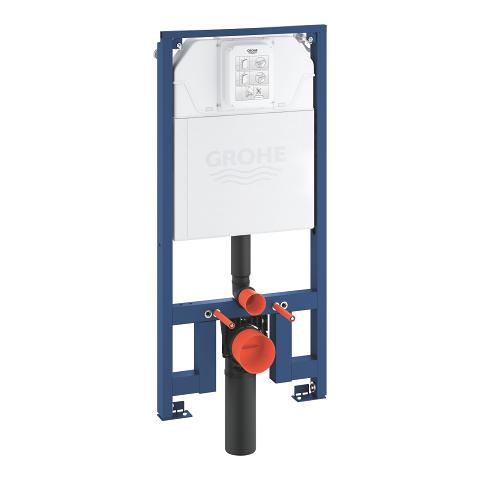

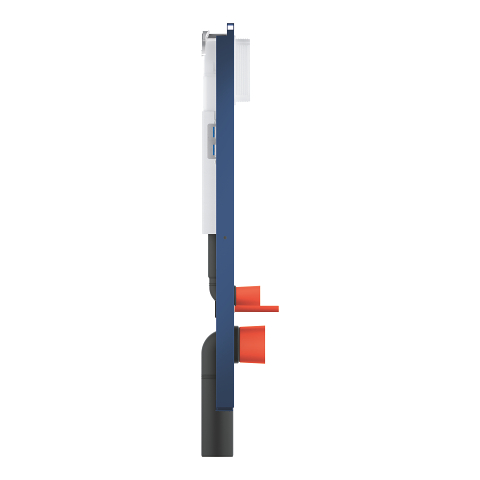

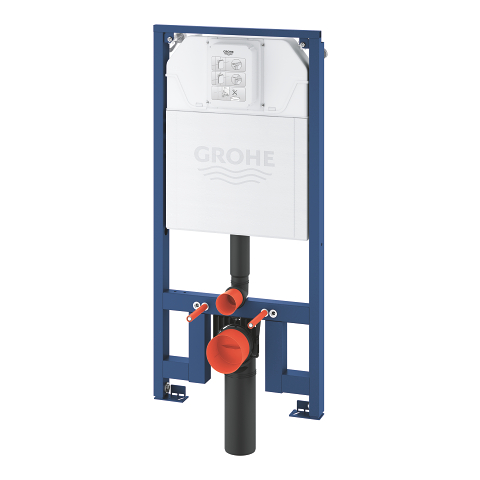

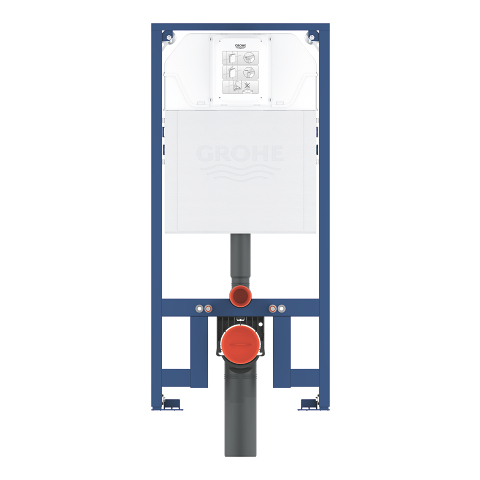

Rapid SL Slim Element for WC with flushing cistern 88.9 mm, 1.13 m installation height

Key Features

• powder coated steel frame, self-supporting
• for on-the-wall installations or studded walls
• for dry-cladding, completely pre-assembled
• cistern volume 6 l
• adjustment ex factory 4.5 l and 3 l
• angle valve 15 mm (½")
• 2 WC fixing bolts
• quick adjustment, lockable
• distance of fixing bolts 180/230 mm
• GROHE EcoJoy - less water, perfect flow
• for mounting of small flush plates revision shaft 40 949 000 to be ordered separately
• Shortable inspection shaft incl. protection during construction phase
• for vertical use

• flushing cistern SLIM, 3 - 6 l, containing following features:

• pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush

• water supply from top

• optional flow manager please order separately

• for on-the-wall installation wall brackets 39 699 000 need to be ordered separately
