GROHE SPA

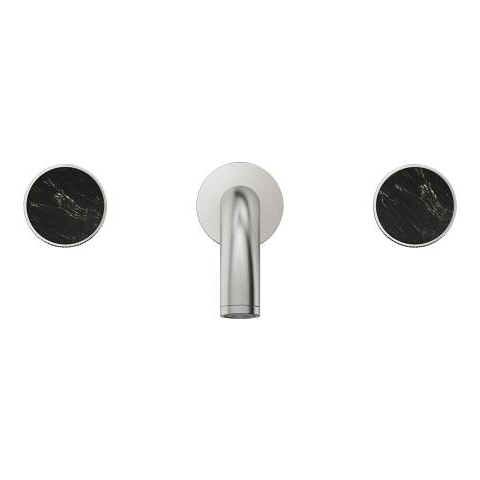

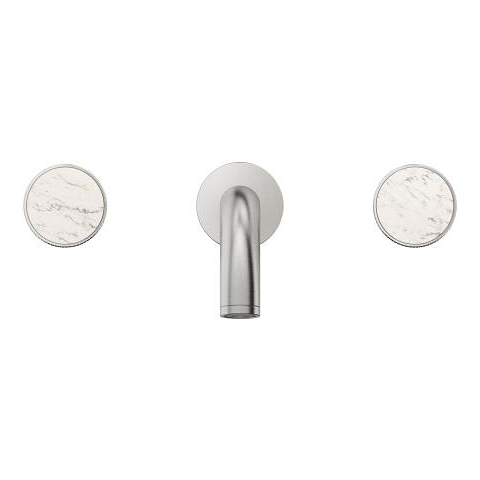

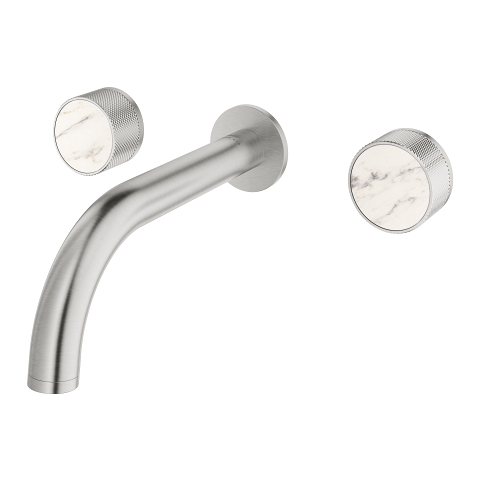

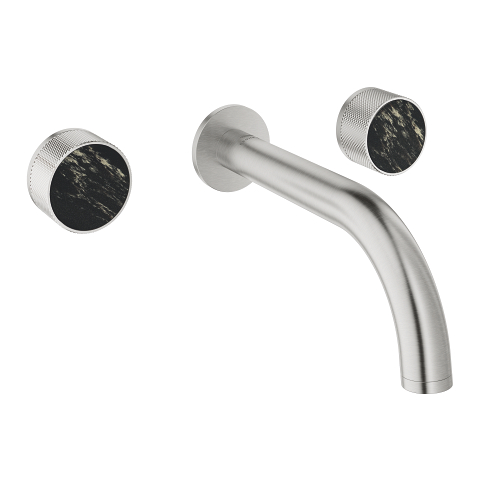

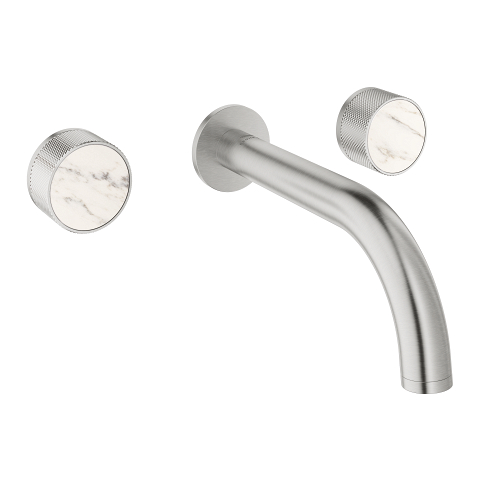

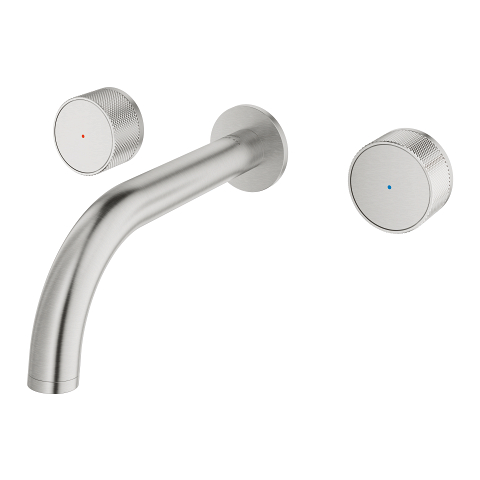

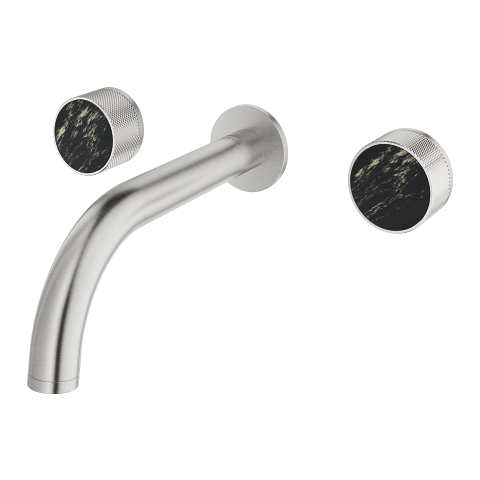

Atrio Private Collection 3-hole wash-basin mixer M-Size
With the GROHE Atrio Private Collection 3-hole basin mixer in M-size in trendy Supersteel, you can add a personal touch to your bathroom by choosing the control elements to suit your taste.
Discover a refuge of grace and elegance with the Atrio Private Collection – the perfect symbiosis of timeless aesthetics, state-of-the-art technology and the highest quality standards, made in Germany. In addition to its delicate design, consisting of clear lines and rounded shapes, this exquisite GROHE SPA series is characterised by its wide range of combinable colours and materials, offering maximum individuality. Thanks to the scratch-resistant PVD coating, the elegant Supersteel surface remains flawless and resistant for a long time. Discover the inner values of this GROHE Atrio Private Collection 3-hole basin mixer in M-size: high-quality ceramic components enable smooth, stepless operation and limit water consumption to 5 l/min (at 3 bar) in an environmentally friendly way – without compromising on performance. The reach of the spout is 180 mm. Choose between the following knob controller inserts – 48460000 (White Attica Caesarstone) or 48461000 (Vanilla Noir Caesarstone). For this wall-mounted 3-hole basin mixer in M-size, you also need the matching GROHE concealed body (29025002). GROHE Atrio Private Collection – for a personal touch in the bathroom.
Key Features
- wall mounted
final installation for
29 025
- headparts 1/2" - 90°
- GROHE Long-Life finish
- GROHE EcoJoy 5.7 l/min laminar mousseur
- maximum flow rate (at 3 bar): 5 l/min
- centre distance 200 mm

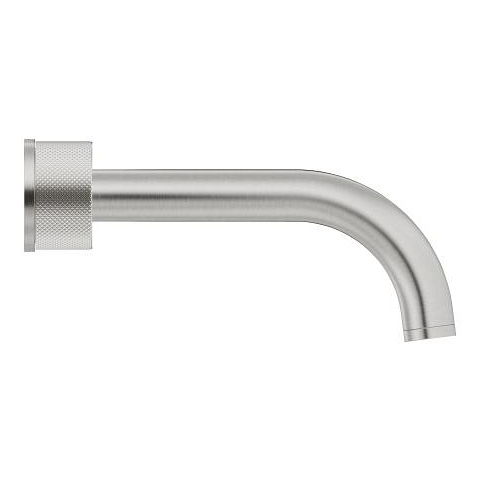

- projection 180 mm
- knobs with metal inlay
- can be combined with 48 460 000 or 48 461 000
- without roughing-in set 29 025 002 (please order separately)
Technical Product Information
CAD Data
| Pos.-nr. | Prod. description | Spare part-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Connection Nipple | 1013459990 |
| 2 | Outlet | 101344DC00 |
| 2.1 | Flow straightener | 48408000 |
| 3 | Handle | 101347DC00 |
| 4 | Cap | 101300DC00 |
| 5 | Extension for spindle | 1013469990 |
| 6 | Inlays made from White Attica Caesarstone material | 48460000* |
| 7 | Inlays made from Vanilla Noir Caesarstone material | 48461000* |
Products and accessories for the installation
With GROHE SPA we curate only the most exclusive and luxurious products to create exquisite places of retreat. Versatile customisation options transform the bathroom into a home spa, impeccably tailored to individual preferences.
