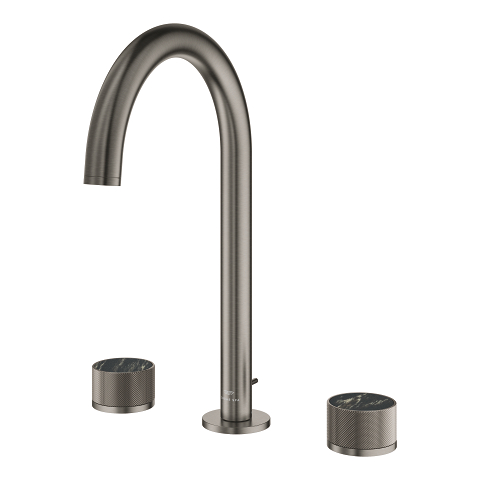

Atrio Private Collection 3-hole basin mixer 1/2″ L-Size
The GROHE Atrio Private Collection 3-hole basin mixer in L-size in stylish Brushed Hard Graphite – choose the control elements to suit your taste and give your bathroom a personal touch!
Discover a refuge of grace and elegance with the Atrio Private Collection – the perfect symbiosis of timeless aesthetics, state-of-the-art technology and the highest quality standards, made in Germany. In addition to its delicate design, consisting of clear lines and rounded shapes, this exquisite GROHE SPA series is characterised by its wide range of combinable colours and materials, offering maximum individuality. Thanks to the scratch-resistant PVD coating, the elegant Brushed Hard Graphite surface remains flawless and resistant for a long time. The GROHE Atrio Private Collection 3-hole basin mixer in L-size not only impresses with its external design, but also with its inner values. With high-quality ceramic headparts, it offers smooth and stepless operation and at the same time ensures environmentally friendly water consumption of just 5 l/min at 3 bar – without compromising on performance. With a convenient installation height of 291mm, it offers plenty of space between the spout and washbasin. For greater flexibility, the delicate curved spout rotates (150° or 360°), but can also be locked in place if required. The practical rod at the back of the tap allows you to operate the drain easily without your hands coming into contact with water. You have the choice of equipping this mixer tap with the following inserts for knob controllers: 48460000 (White Attica Caesarstone) or 48461000 (Vanilla Noir Caesarstone) GROHE Atrio Private Collection – for a personal touch in the bathroom.
Key Features
- ceramic headparts 1/2", 90°
- GROHE Long-Life finish
- GROHE Water Saving - Less water, perfect flow
- maximum flow rate (at 3 bar): 5 l/min
swivel tubular spout with mousseur and stop limiter
- adjustable swivel area 0° / 150° / 360°
- pop-up waste set 1 1/4"
flexible connection hoses between spout and side valves
- knobs with metal inlay
- can be combined with 48 460 000 or 48 461 000
Technical Product Information
CAD Data
Pos.-nr. | Prod. description | Spare part-nr. |
---|---|---|
* Optional accessories | ||
1 | Cap | 101300AL00 |
2 | Handle | 101299AL00 |
3 | Ceramic headpart, 1/2" | 45882000 |
3.1 | O-ring Ø18,2 x Ø1,7 | 0392400M |
4 | Coupling nut 1/2" | 1290100M |
4.1 | Fibre seal dia. Ø18.5 x Ø12 x 2 | 0138900M |
5 | Flexible connection hose | 45704000 |
6 | Fixing clamp | 6554100M |
7 | Waste set 1 1/4" | 28910AL0 |
7.1 | Plug | 07182AL0 |
7.2 | Eccentric rod | 07052000 |
8 | Pop-up rod | 65196AL0 |
9 | Outlet | 101298AL00 |
9.1 | Flow straightener | 48408000 |
9.2 | Safety ring | 4826600M |
9.3 | Sealing washer | 0128500M |
10 | Ceramic headpart, 1/2" | 45883000 |
10.1 | O-ring Ø18,2 x Ø1,7 | 0392400M |
11 | Inlays made from White Attica Caesarstone material | 48460000* |
12 | Inlays made from Vanilla Noir Caesarstone material | 48461000* |
13 | Eccentric rod | 07341000* |
14 | Coupling nut 1/2" x 14.5 mm | 1290200M* |
Products and accessories for the installation
With GROHE SPA we curate only the most exclusive and luxurious products to create exquisite places of retreat. Versatile customisation options transform the bathroom into a home spa, impeccably tailored to individual preferences.
