GROHE SPA

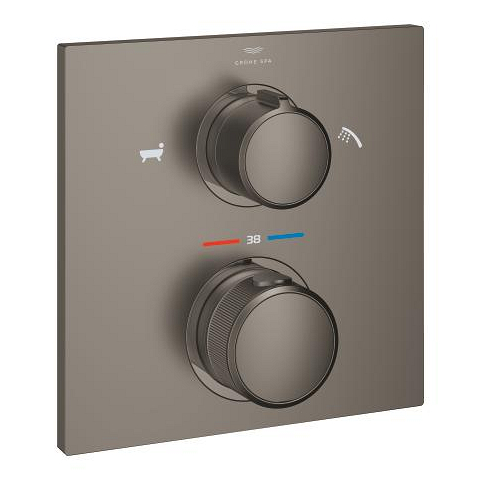

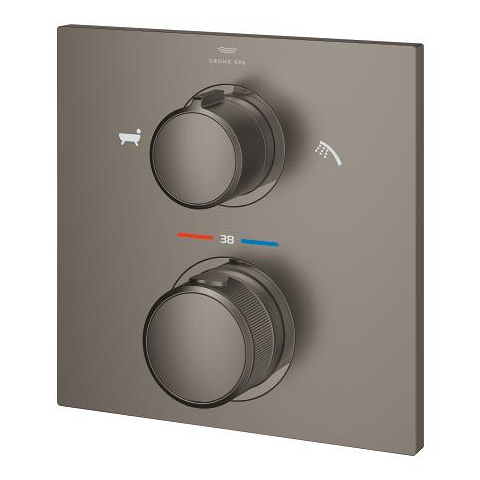

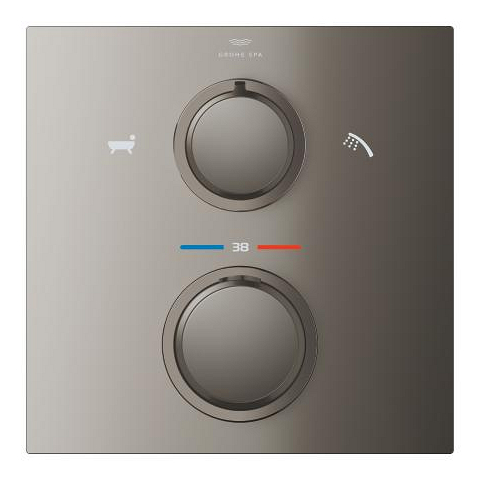

Allure Thermostat for concealed installation with 2-way diverter hand shower/bath filler
Create a modern bathroom that invites you to enjoy, with the sensual lines, precision control and appealing features of the GROHE Allure bath thermostat
Relax and enjoy with the GROHE Allure mixer for the bathtub, created to offer pure indulgence. With a slim, defined profile and organic transitions, Allure’s aesthetics invite interaction. Intuitive control meets incredible precision in this crafted collection where performance and user comfort are both treated as equally essential. Made in Germany, this thermostatic mixer trim set in stylish and durable satin graphite is designed for space-saving concealed installation. With the diverter and volume control integrated in one single handle you can switch effortlessly between shower and bath outlet and simultaneously set the volume. The thermostat technology ensures a constant water flow at the desired temperature with no unpleasant fluctuations. Great for homes with children: the solid metal handle for temperature control has a safety function that automatically stops at 38° C to prevent scalding. You unlock it by pressing the release button while an optional limiter at 43° C or 46° C adds a second level of protection. And thanks to the wall escutcheon with locking system and covered sealing the installation is swift and easy. GROHE Allure – precision in form and function. This trim set is designed to be installed with the GROHE Rapido Smartbox (35600000/35604000), sold separately. And don’t worry: This combined solution for concealed installation is 100% safe against leakage.
Key Features
final installation for
- GROHE Rapido SmartBox (35 604)
- GROHE TurboStat compact cartridge
- GROHE Long-Life finish
- GROHE FastFixation escutcheon with covered shaft sealing and covered fixing
- metal escutcheon, retroactively 6° adjustable
- printed hand shower and bath filler symbol
GROHE SafeStop safety button at 38°C
- GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
- GROHE AquaDimmer, integrated shut off/diverter valve
- metal handles
outlet B = 27 l/min, outlet C = 30 l/min
- without roughing-in set 35 600/35 604 (please order separately)
Technical Product Information
CAD Data
Pos.-nr. | Prod. description | Spare part-nr. |
---|---|---|
* Optional accessories | ||
1 | Mounting plate | 49080000 |
2 | Aquadimmer | 49084000 |
3 | Thermostatic compact cartridge 3/4" | 49028000 |
4 | Non-return valve | 49085000 |
5 | Seal | 48360000 |
6 | GROHE TurboStat cartridge 3/4" | 49003000* |
7 | Socket Spanner | 49059000* |
8 | Service stops | 1405300M* |
9 | Universal extension set 2-handle thermostats, 25 mm | 14058000* |
With GROHE SPA we curate only the most exclusive and luxurious products to create exquisite places of retreat. Versatile customisation options transform the bathroom into a home spa, impeccably tailored to individual preferences.
